How Much Aerosol Paint Do I Need for a Pickup Truck?

how much aerosol paint for pickup truck-1080x400.jpeg

Quick Answer: Typical Spray Paint Coverage per Pickup Truck Panel

(Based on typical pickup truck panel sizes and typical coverage amounts. These estimates assume 3-5 coats of base coat and 3–4 coats of clear coat.)

Doors: 2 cans base + 2 cans clear
Hood: 3 cans base + 3 cans clear
Front Fender : 3 cans base + 3 cans clear

Pickup truck panels are generally larger and taller than car panels, which may increase paint usage per panel.

How Much Primer, Base Coat, and Clear Coat Do I Need?

Primer (Spot Coverage)

Used where bare metal or plastic is exposed
Most repairs require spot priming, not the entire panel
Apply at least 2 coats
Primer typically uses the fewest cans

Base Coat (Color)

Always applied in multiple wet coats

May be applied to:

An entire panel, or
A masked section for partial repairs
Larger primed areas may require extra base coats for full coverage
Metallic and pearl colors require a few (2-4) extra color coats applied lightly to help the metallic or ceramic flakes align evenly for a smooth, factory-matched finish. These light finishing passes are called control coats or drop coats.
Blue and red base colors can require more coats to achieve full coverage due to more transparent pigments.

Clear Coat (Protection & Gloss)

Applied over all painted areas
Typically 3–4 coats
Extra coats improve:

Gloss
UV resistance
Chip protection (especially on hoods and front bumpers)

How Many Spray Paint Cans Do I Need Per Pickup Truck Panel?


The table above shows estimates assuming typical pickup truck panel sizes and typical coverage amounts. Your mileage may vary, so adjust up or down based on your repair.

If your repair is below the waistline of the door, you might just spray the lower half, up to the trim reducing paint usage.
If a large area was primed due to extensive chips that were sanded to the bare metal, additional base coats may be required to fully cover the primer.

Step-by-Step: How to Estimate Paint for Your Repair

Step 1: Identify the Panels Being Painted

Determine whether you’re painting a full panel or a partial section.

Step 2: Determine How Much Was Sanded

Bare metal or plastic areas will require primer.

Step 3: Count Coats Per Product

Primer: 2+ coats (spot areas)
Base Coat: 3-5 coats
Clear Coat: 3–4 coats

Metallic, pearl, red and blue colors may require extra coats to achieve full coverage and match.

Step 4: Round Up

If your estimate, based on the size of your repair area, falls between can quantities, round up.

FAQ

How far does one can of automotive spray paint go?

Each can should spray about 12-16 square feet, depending on how heavy you apply it, the amount of blending, etc.

Do metallic or pearl colors require more paint?

Yes. Metallic and pearl colors need additional paint coats, called control (or drop) coats to achieve even coverage and proper color consistency. These few extra (2-4) color coats applied lightly help the metallic or ceramic flakes align evenly for a smooth, factory-matched finish.

Do some colors need more coats to achieve full coverage?

Yes, many blue and red colors will usually need a full 5 base coats (plus any control coats for metallics or pearls) to achieve full coverage.

Can I paint only part of a panel?

Yes. Masking off a section can reduce paint usage, but blending over primer may still require extra base coats.

Why does clear coat usually require as many cans as paint cans?

Clear coat is applied over the entire painted area and often in multiple coats to achieve gloss, UV protection, and durability.

Can aerosol spray paint be used to paint an entire pickup truck?

Aerosol spray paint is designed for spot repairs and individual body panels. Painting an entire pickup truck with spray cans is generally impractical due to the scope of the repair and the number of aerosol cans required.

Related Help Docs & Videos

Learn more — from deciding if you need primer to applying your OEM-matched paint with confidence.

When Should I Apply Primer?

The answer depends on how deep the damage is.

How to Apply a Tri-Coat (L2 Mid-Coat), Metallic, or Pearl Paint

Step-by-step guide for applying metallic, pearl, or L2 control coats so that metallic flakes align consistently.

How To Spray ScratchesHappen Touch Up Paint

Watch a complete how-to video showing all steps (and some pro tips) on how to prep, prime and paint an aerosol repair.

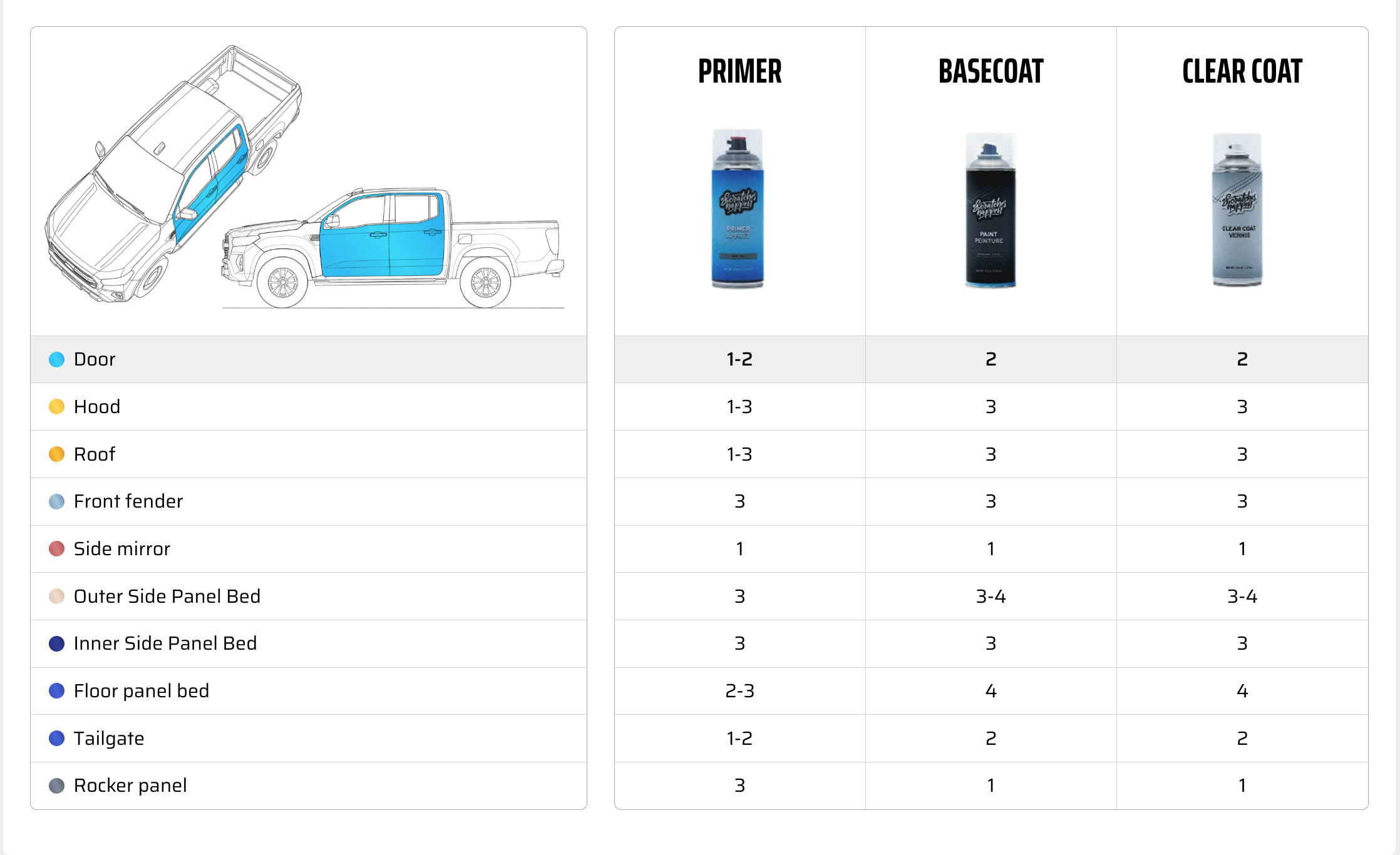

Aerosol Paint Coverage by Pickup Truck Body Panel (Text Version)

(This text mirrors the Pickup Truck graphic for search and accessibility purposes.)

Front Door

• Primer: 1–2 cans • Base Coat: 2 cans • Clear Coat: 2 cans

Hood

• Primer: 1–3 cans • Base Coat: 3 cans • Clear Coat: 3 cans

Roof

• Primer: 1–3 cans • Base Coat: 3 cans • Clear Coat: 3 cans (Roof repairs are less common and can be more challenging due to spray angle.)

Front Fender

• Primer: 3 cans • Base Coat: 3 cans • Clear Coat: 3 cans

Outer Side Panel (Bed)

• Primer: 3 cans • Base Coat: 3-4 cans • Clear Coat: 3-4 cans

Rocker Panel (unless it's oversized)

• Primer: 1 can • Base Coat: 1 can • Clear Coat: 1 can

Side Mirror

• Primer: 1 can • Base Coat: 1 can • Clear Coat: 1 can

Inner Side Panel (Bed)

• Primer: 3 cans • Base Coat: 3 cans • Clear Coat: 3 cans

Floor Panel (Bed)

• Primer: 2–3 cans • Base Coat: 4 cans • Clear Coat: 4 cans

Tailgate

• Primer: 1–2 cans • Base Coat: 2 cans • Clear Coat: 2 cans
